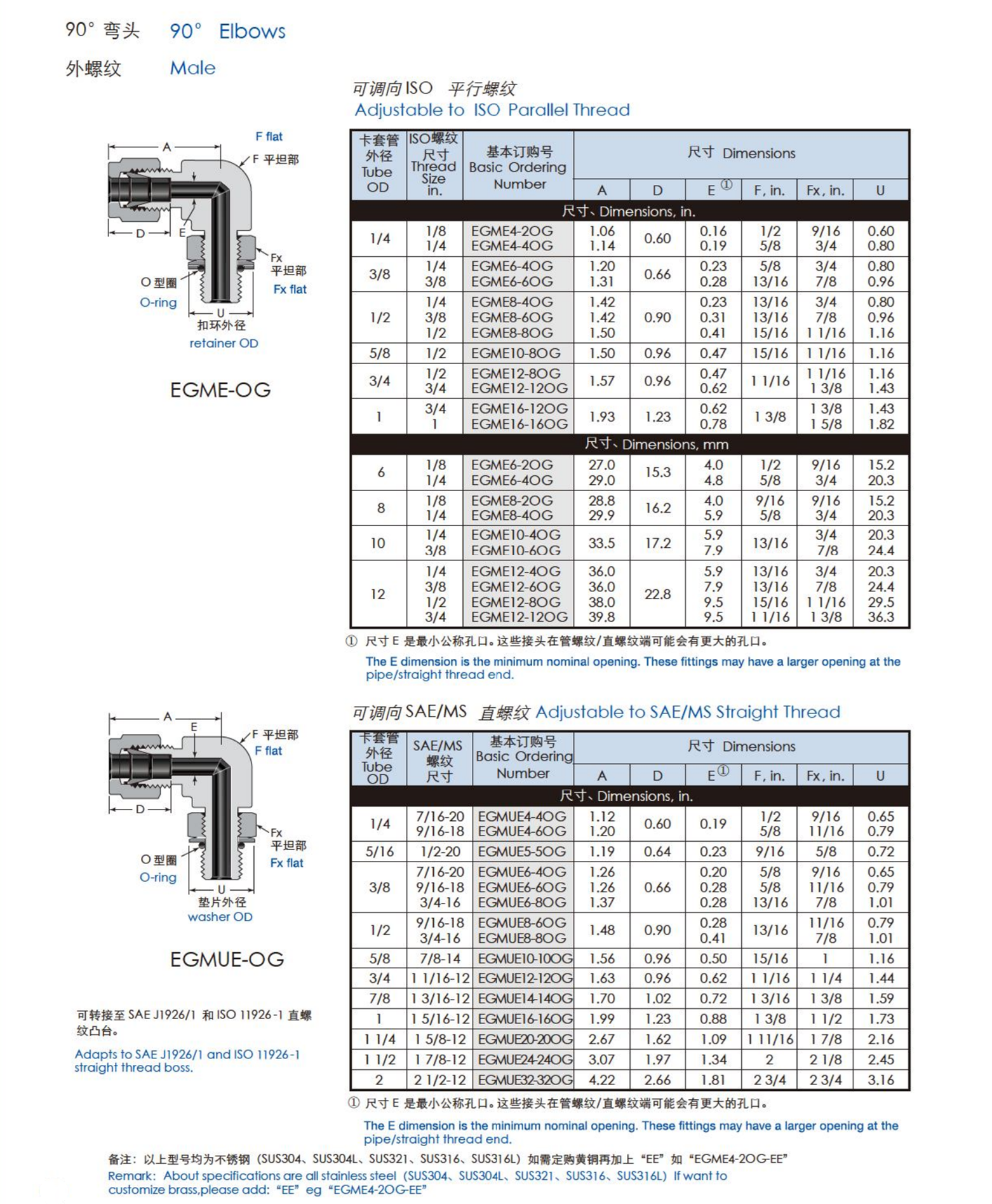

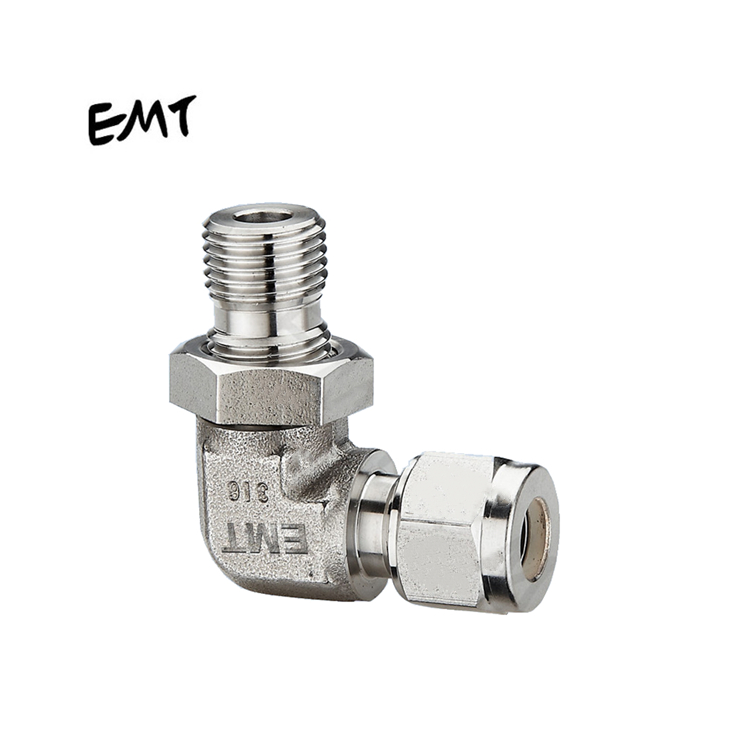

EMT EGMUE-OG stainless steel adjustable tube fittings 90 degree double ferrule male elbow connector
Product Description
EMT EGMUE-OG stainless steel adjustable Tube Fittings 90 degree double ferrule male elbow connector
YIMIANTE INSTRUMENT FITTINGS | ||
PRODUCT NAME | EMT STAINLESS STEEL INSTRUMENT COMPRESSION ELBOW FITTINGS | |
Tube OD | 1/8 TO 2 inch , 3mm to 50mm | |
SHAPE | ELBOW 90 DEGREE | |
TYPE STANDARD | ASME ANSI | |
MATERIAL | STAINLESS STEEL 304 , 316 L | |
APPLICATION | INSTRUMENT TUBE CONNECT | |
MOQ | 1 PC AVAILABLE IF WE HAVE STOCK , 100 FOR CUSTOM PRODUCE | |
CERTIFICATION | DNV GL , ABS , CCS , LR , TUV , ISO9001 | |
SURFACE TREATMENT | PLOSHING | |
DELIVERY TIME | 30 WORKING DAYS | |
TERM | EXW , FOB , CIF , DDU | |
PAYMENT | 30% DEPOSIT , 70% BALANCE BEFORE SHIPPING | |
PACKAGE | PP BAG + WATERPROOF CARTON , EXPORT WOOD BOX | |
SHIP METHOD | BY AIR , EXPRESS , RAILWAY , SEA ALL AVAILABLE | |
SAMPLE | AVAILABLE FREE | |
Stainless steel Compression tube connector, double ferrule female male tube fitting
1). Available in tube sizes from 1/16 to 2 in. and 2 to 50 mm
2). nominal pressure:up to 6000 psi
3). applicable temperature:150-400oC
4). applicable medium:oil, water,gas and other corrosive or non-corrosive medium
5). the material for manufacture:20#,1Cr18Ni9Ti, ss 304, 306,316L, carbon steel, brass, etc
6). the demands for fitting pipes:ø4--ø42
7). cone thread:NPT/Z, NPSM, BSPT/R, BSP/G, JIC.DIN, etc.
8). safe, reliable and leak-proof connection, easy installation and sufficient pull-up, no torque transmittion
9). specified specification available upon request
Features
1.Live-loaded, two-ferrule design.
2.Easy to install.
3.No torque is transmitted to tubing during installation.
4.Swagelok gap inspection gauge ensures sufficient pull-up upon initial installation.
1). Available in tube sizes from 1/16 to 2 in. and 2 to 50 mm
2). nominal pressure:up to 6000 psi
3). applicable temperature:150-400oC
4). applicable medium:oil, water,gas and other corrosive or non-corrosive medium
5). the material for manufacture:20#,1Cr18Ni9Ti, ss 304, 306,316L, carbon steel, brass, etc
6). the demands for fitting pipes:ø4--ø42
7). cone thread:NPT/Z, NPSM, BSPT/R, BSP/G, JIC.DIN, etc.
8). safe, reliable and leak-proof connection, easy installation and sufficient pull-up, no torque transmittion
9). specified specification available upon request
Features
1.Live-loaded, two-ferrule design.
2.Easy to install.
3.No torque is transmitted to tubing during installation.
4.Swagelok gap inspection gauge ensures sufficient pull-up upon initial installation.
1.How can I put the order ? You should send the inqury to our sales to confirm the type ,quantity , price and shipping cost , then make the contract on Alibaba or we can make PI to you . 2.What are your payment term ? Payment <1000usd , full payment in advance , Payment ≧1000USD , 30% deposit, 70% balance before delivery. we will show you photos of the product and packaging when products finished . 3.Can you provide the free sample ? Yes, We provide free samples, you pay the shipping cost . 4.Do you provide OEM service ? Yes , sure ,we are famous brand in China, we have professional team to provide the tenical support for you . 5.What if I don’t have the drawings ? Our engineer will make the drawings according your photos or information . 6.What is your MOQ? MOQ one is available if we have stocks. 7.Can you print our logos on the parts ? Yes , sure , we can provide you laser printing logos and engrave logos . 8.What is your shipping method ? According the goods scale , we can provide express , air shipping and sea shipping , if you have shipping forwarder in China , we can do EXW and delivery the goods to them. If you have DHL account , we can express goods directly , and pay the cost by the account . 9.Can I visit your facotry ? Yes , sure , you can talk the your visit schedule carefully with our sales in advance , we will arrange accordingly
