Three-Way Plastic Fast Fitting
| Payment Type: | T/T,Western Union |
|---|---|
| Terms of Trade: | FOB,CFR,CIF |
| Min. Order: | 200 Bag/Bags |
| Delivery Time: | 10 Days |
| Packaging: | carton |
|---|---|
| Productivity: | 100000/month |
| Brand: | Brando |
| Transportation: | Ocean,Land,Air |
| Place of Origin: | china |
| Certificate: | CE / GS |
Basic Info
Model No.: BF007
Product Description
Male Tee Adapter in Water Filter Parts with Fast Connecting for Connecting Pipes
Male Tee Adapter Features:
Material Pom, Delrin Color White, other color also can be customized Port 3 ports, 2 are fast fitting push in type, another one is male thread Port Size 1/4" 1/4" 3/8" Application Hot and cold water system
Male Tee Adapter Each Port Size Option:
Male Tee Adapter for reverse osmosis water treatment system Part No. Tube OD (A) Tube OD (B) Tube OD (C) BF007-A 1/4 1/4 1/4 BF007-B 1/4 3/8 1/4 BF007-C 1/4 1/4 3/8 BF007-D 1/4 3/8 3/8 BF007-E 3/8 3/8 3/8 BF007-F 3/8 1/4 3/8
More Descriptions:
1--Material: FDA & NSF certified POM plastic
2--Application :
Our fast fittings and connectors are widely used in water, beverage and food applications,
such as RO water filtration system, water treatment system, coffee maker, beverage machine,
refrigerator, vending machine, and so on.
3-- Leakage Proof Design: Have been proved in markets for years.

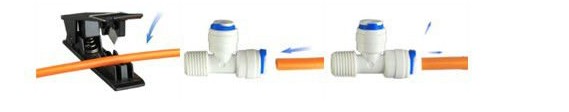

4-- Light weight, and easy to install.
5-- Color: white or grey body with blue locking clip.
Material Standards:
| Material Options | Fitting Color | O-ring |
| Acetal | Grey, Black, White | NBR/EPDM |
| Polypropylene | White | NBR/EPDM |
| Brass | Brass, or chromed | NBR/EPDM |
Fitting Working Pressure and Temperature:
| Small Size | Large Size | ||||||||||
| 5/32" | 3/16" | 1/4" | 5/16" | 3/8" | 1/2" | 5/8" | 7/8" | 28mm | |||
| 4mm | 5mm | 6mm | 8mm | 10mm | 12mm | 15mm | 16mm | 18mm | 22mm | 28mm | |
| 1℃ 34℉ | 16bar 230psi | 11bar 170psi | 11bar 170psi | ||||||||
| 20℃ 68℉ | 16bar 230psi | 11bar 170psi | 11bar 170psi | ||||||||
| 65℃ 150℉ | 10bar 150psi | 7bar 100psi | 7bar 100psi | ||||||||
Outer Diameter Tolerance Limit of Tubing Used with Fittings:
| Size | Tolerance | |
| small size | 5/32", 4mm | +-0.004" (+-0.1mm) |
| small size | 3/16", 5mm | +-0.004" (+-0.1mm) |
| small size | 1/4", 6mm | +-0.004" (+-0.1mm) |
| small size | 5/16", 8mm | +-0.004" (+-0.1mm) |
| small size | 3/8", 10mm | +-0.004" (+-0.1mm) |
| small size | 1/2", 12mm | +-0.004" (+-0.1mm) |
| large size | 5/8", 15(16)mm | +-0.004" (+-0.1mm) |
| large size | 7/8", 18(22)mm | +-0.004" (+-0.1mm) |
| large size | 28mm | +-0.004" (+-0.1mm) |
Maximum Permissible Torque:
| 1/8", 1/4" | 3/8", 1/2" | 3/4" | |||||
| Plastic | Maximum Torque | Nm | 1.5 | 3.0 | 4.0 | ||
| Steel | Maximum Torque | Nm | 7.0-9.0 | 12.0-14.0 | 22.0-24.0 | 28.0-30.0 | 40.0 |
We aslo have many types quick fitting, push-in tube fitting, weclome your any question, we will response at once
